Vehicles and machinery on construction sites frequently deal with numerous individuals walking around them, often in areas of poor visibility. It is therefore essential to provide them with the tools to operate safely, and minimise this risk.
With Pedestrian AI
Improving site safety with AI camera technology
Intelligently detects humans around the sides and rear of a vehicle.
On busy construction sites, it's easy for operators to get distracted, and miss workers moving around the vehicle or piece of machinery they are operating.

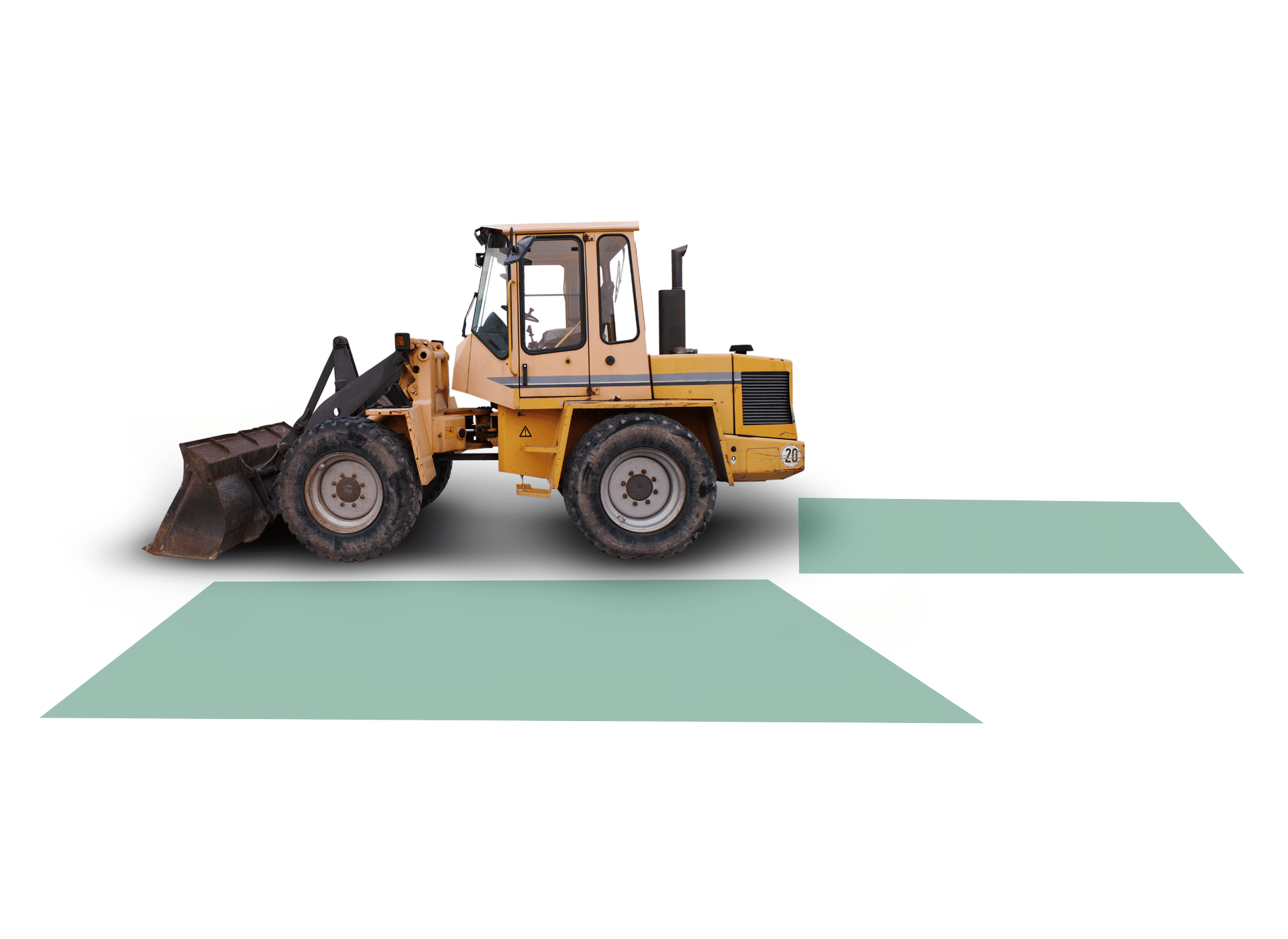

Pedestrian AI uses innovative AI technology to detect when a human is in an area of risk within three zones around the vehicle; both sides and the rear.

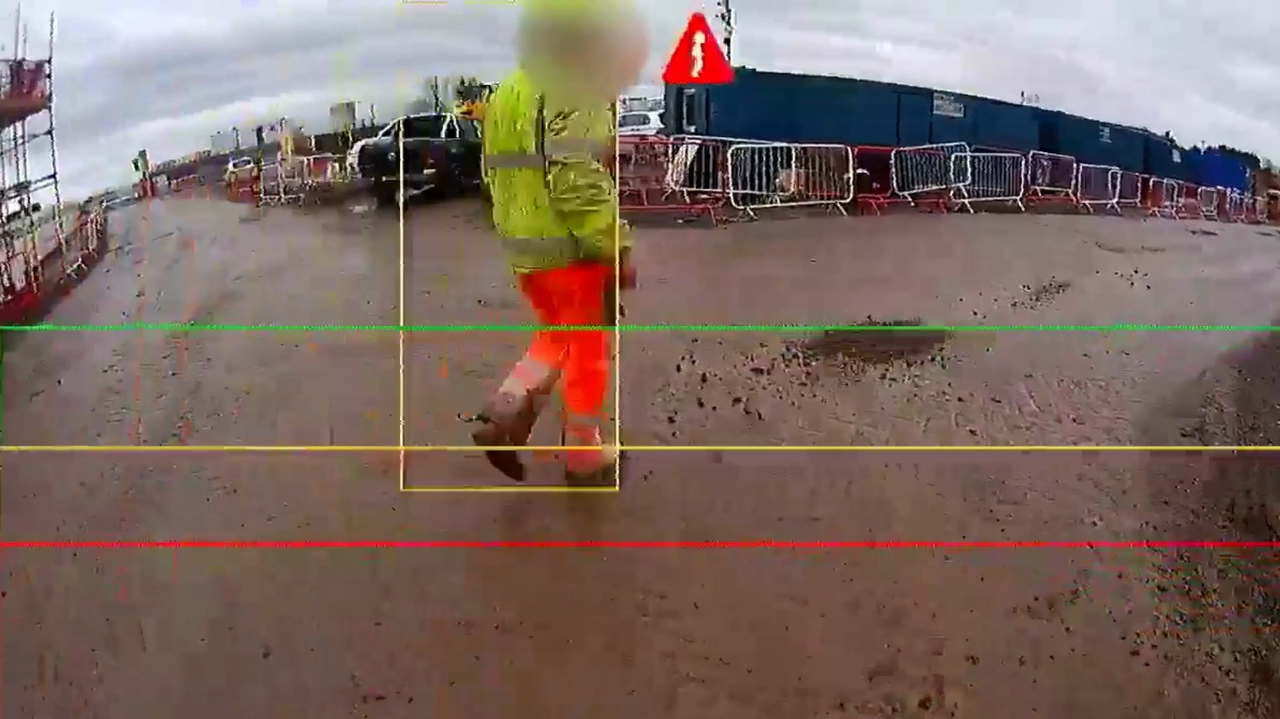

The cameras provide a real-time visual and audio alarm in-cab to alert the operator to potential danger. The high-definition image highlights the risk, and helps operators manoeuvre with more awareness and avoid incidents. An external speaker can also be fitted to warn the individual at risk.
Pedestrian AI has specific alerts for each of the three cameras surrounding the vehicle or machinery. If a human is detected by any of the AI cameras, an alert is created for that camera and is sent back to VUEhub for review. When this occurs, the in-cab monitor will display the live footage for the vehicle operator.
The solution can also feature an in-cab panic button which can be pressed in emergencies by the operator of the vehicle. This too will create an alert that is sent to your Footage Library for review.
For site managers needing to be informed immediately when an AI camera is triggered or a panic button is pressed, alerts can be set up to be sent to one or more email addresses.
Scheduled reports are available for any AI or panic alerts triggered within a specified date range (daily, weekly, monthly).
The severity rating for each type of alert is based upon the following criteria;

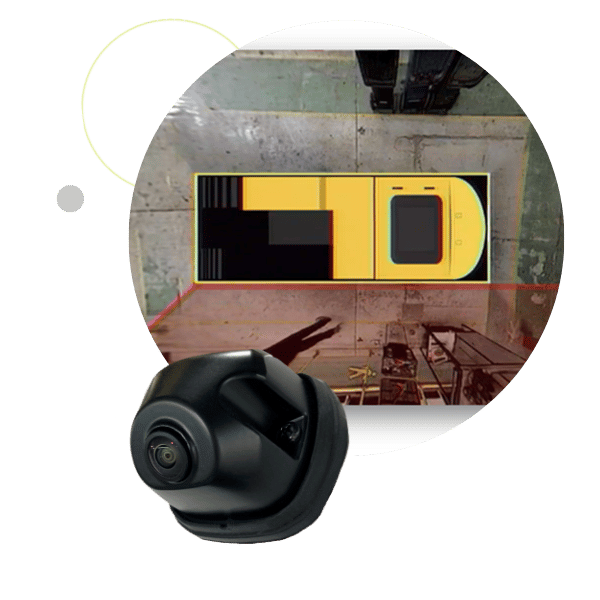

VUE360 is the new generation of vehicle camera technology designed to assist vehicle operators with visibility and manoeuvres at low speeds in any direction. It eliminates blind spots. This improved visibility greatly reduces the number of injuries and incidents on busy sites.

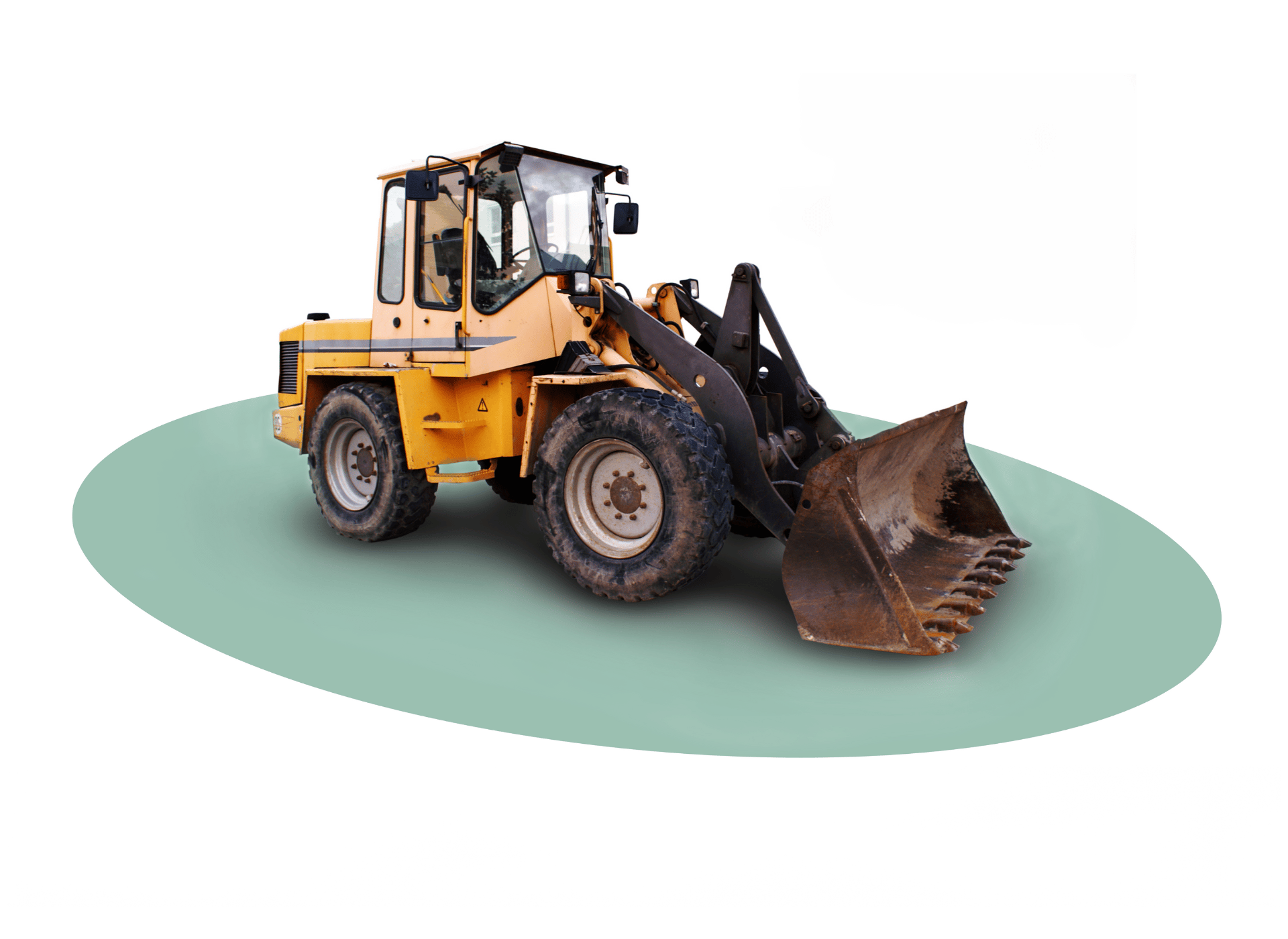

Using the latest algorithm technology, the device stitches video images together in real-time to create a 360-degree birds-eye view of a vehicle. The resulting clear seamless image is shown on a high-definition in-cab monitor.
- - Four wide-angle cameras are placed around the vehicle
- - The live images are stitched together
- - A bird's-eye view appears on the driver's monitor, eliminating blind spots around the vehicle
The system can also feature an in-cab panic button which can be pressed in emergencies by the operator of the vehicle. This will create an alert that is sent to your Footage Library for review and can also be sent as an email.
